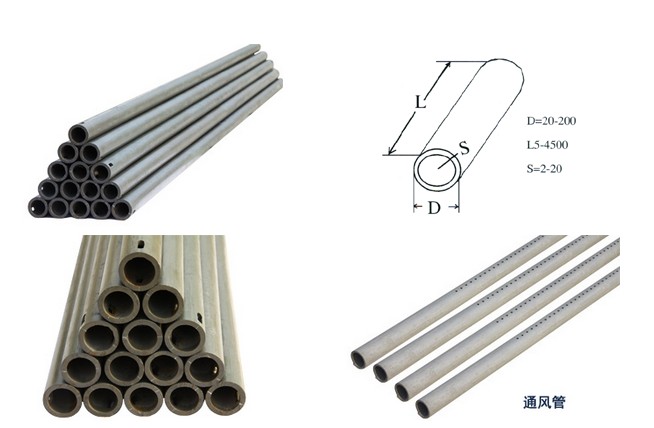

RbSiC SiSiC ceramic roller

The rollers are applicable in the sintered zone of roller hearth kiln, which produces daily porcelain, sanitary ceramics, construction ceramics and so on. The roller is a key part of roller hearth kiln,which has excellent load-bearing ability and thermal shock resistance under high temperature,and can be applied in high temperature zone of roller hearth kiln for tableware,sanitary ware and electronic porcelain.

Inquiry

Description

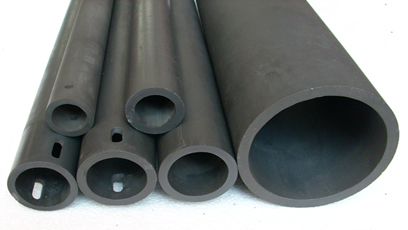

Reaction-bonded silicon carbide roller rod is applied to high-temperature burning zone of the roller furnace for domestic ceramics, sanitary ceramics, building ceramics, glass and magnetic materials, etc.
Reaction-bonded silicon carbide roller rod is characterized by big high-temperature resistance and no bending deformation, and its service life is 10-15 times that of alumina ceramic rod.

RBSIC(SiSiC)
Loading Capacity of RBSIC(SiSiC) Rollers
Size of Section (mm)	Wall Thickness(mm)	Concentrated Loading (kg.m/L)	Uniformly Distributed Loading(kg.m/L)
30	5	43	86
35	5	63	126
38	5	77	154
40	6	97	194
45	6	130	260
50	6	167	334
60	7	283	566
70	7	405	810

The Bending Strength of RBSIC(SiSiC) Rollers is 250MP, safety coefficient is 5.

Concentrated Loading =the Value in the Table Accordingly x 1/L,
Uniformly Distributed Loading = the Value in the Table Accordingly x 1/L。
