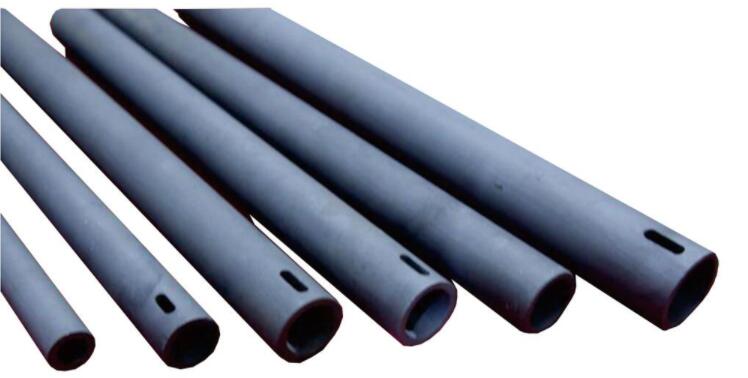

Ceramic roller silicon carbide roller
The recrystallized silicon carbide roller has the excellent load-bearing ability,size stability,oxidization resistance and corrosion resistance under high temperature,especially applied as the structural beam in ceramic kiln,max working temperature is 1620℃.

Inquiry


Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description

As a kind of refractory kiln furniture, RBSIC/SISIC roller plays a bearing/conveying role and it is the core part in the roller kiln. It makes an important contribution to the energy conservation, products firing cycle shortening and automation of roller kiln production. High bearing strength&extreme hardness Excellent thermal shock resistance Corrosion resistance&wear resistance High temperature creep resistance 10 times operation life comparing to Alumina roller.












SPECIFICATION:



Index

RSiC

NSiC

RBSiC

SiC

Bulk density(g/cm3)

2.65-2.75

2.75-2.85

3.02

2.8

SiC(%)

99

75

83.66

90

Si3N4(%)

0

23

0

0

Si(%)

0

0

15.65

9

Porosity(%)

15-18

10-12

0.1

7-8

Bending strength(MPa)

80-100(20)

160-180(20)

250(20)

500(20)

Bending strength(MPa)

90-110(1200)

170-180(1200)

280(1200)

550(1200)

Bending strength(MPa)

90-120(1350)

170-190(1350)

-

-

Modulus of elasticity(GPa)

300(20)

580(20)

330(20)

200

Modulus of elasticity(GPa)

-

-

300(1200)

-

Thermal conductivity(w.m-1.k-1)

36.6(1200)

19.6(1200)

45(1200)

13.5-14.5(1000)

Coefficient of thermal expansion(K-1x10-6)

4.69

4.7

4.5

3

Rigidity

-

-

13

-

Max working temperature()

1620(oxid)

1450

1380

1300
