Wear-resistant ceramic plates play a vital role in mining and manufacturing. As a protective barrier for equipment, wear-resistant ceramic plates can significantly extend the service life of equipment, improve production efficiency, and reduce maintenance costs.
Applications in Mining
a. Crushing equipment
In mining, crushing equipment is one of the most common mechanical equipment. The ore produces strong wear on the inner wall of the equipment during the crushing process. Wear-resistant ceramic lining plates can effectively protect key components of crushing equipment and extend their service life.
b. Grinding equipment
Grinding equipment such as ball mills and autogenous grinders will be severely worn during the ore crushing process. Wear-resistant ceramic lining plates not only protect equipment, but also improve grinding efficiency and uniformity of product particle size distribution by optimizing the design of wear-resistant lining plates.
c. Conveyor system

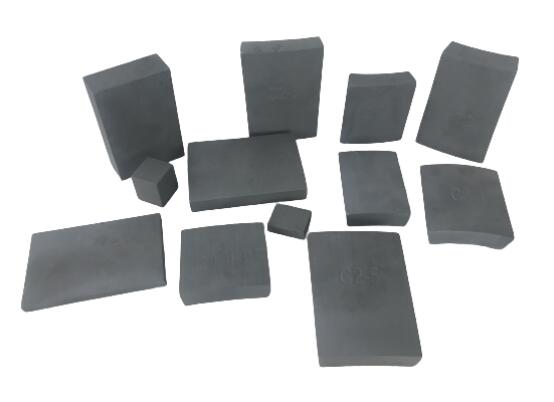

During the mining production process, large amounts of ore and materials need to be transferred through conveying systems. The inner walls of conveyor belts and conveyor troughs are also subject to wear. Installing wear-resistant ceramic liners can effectively reduce wear and downtime of conveying equipment and improve the efficiency of the production line.China supplier impact resistance RBSiC / SiSiC silicon carbide sic plates / tiles / sheets with high hardness, wear resistantce oxidation resistance are widely used in papermaking, chemical, electronics, pharmaceutical and other ink jet, lithium battery materials, electronic pulp nano-ceramic sanding machines.
1.Technical parameters of RBSiC / SiSiC silicon carbide sic plates / tiles / sheets :
|
ITEM |
UNIT |
DATA |
|
Temperature |
℃ |
1380 |
|
Density |
g/cm³ |
≥3.02 |
|
Open Porosity |
% |
<0.1 |
|
Moh's Scale of Hardness |
|
13 |
|
Bending Strength |
MPa |
250 (20℃) |
|
MPa |
280 (1200℃) |
|
|
Modulus of Elasticity |
GPa |
330 (20℃) |
|
GPa |
300 (1200℃) |
|
|
Thermal Conductivity |
W/m.k |
45 (1200℃) |
|
Coefficient of thermal expansion |
k-1×10-6 |
4.5 |
|
Acid Alkaline -proof |
|
Excellent |
2.Property:
◊ Superior wear resistance, impact resistance and corrosion resistance
◊ Excellent flatness and temperature resistance up to 1380℃
◊ Excellent oxidation resistance
◊ Good dimensional control of complex shapes
◊ Easy installation
◊ Longer service life ( about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane)
3. Specification of RBSiC / SiSiC silicon carbide sic plates / tiles / sheets:
Thickness available: 4mm - 45mm
Remark: Other sizes and shape are available upon requests.
4.Other RBSiC / SiSiC silicon carbide products:
The main products of reaction bonded silicon carbide ceramics are: cross beams, rollers, coling air pipe,burner nozzles,thermocouple protecting tubes,temperature measuring parts, radiant tubes, desulfurization nozzles, crucible,batts, wear resistant lining materials,plates, seals, rings and special shaped structural parts.
