1:High temperature tolerance
2:High thermal conductivity
3:Excellent oxidating resistance.
4:Corrosion resistance
5.Long service life
Inquiry
|
Description:
Applicable to box-type manual sandblasting machine and box-type automatic sandblasting machine.
Can be used for sanding glass, sandblasting, surface polishing processing, mechanical parts.
The blast nozzle accelerates the air and abrasive as the mixture leaves the end of the hose.
The taper and length of the nozzle inlet and outlet determine the pattern and speed of the abrasive leaving the nozzle.
The composition of the lining material determines its wear resistance.
Designed for surface cleaning, rust removal, glass, aluminum alloy and other decorative surface sandblasting, marble carving.
Specifications:
Condiiton: 100% Brand New
Material: Aluminum + Silicon Carbide
Color: Black + Silver
Silicon Carbide Nozzle Inner Diameter: 8mm
Operation:
1. The operator inserts the nozzle washer into the contractor threaded nozzle holder and turns it by hand until it is firmly fixed on the washer.
2. With all related equipment properly assembled and tested, the operator points the nozzle to the surface to be cleaned and presses the remote control handle to start the blast.
3. The operator positions the nozzle 18 to 36 inches from the surface and moves smoothly in a manner that produces the desired cleanliness. Each pass should overlap slightly.
4. The operator must replace the nozzle once the hole wears beyond 0.16 inches of the original size.
For sandblasting machine, water cutting machine, steel plant, thermal power plant and other industries.

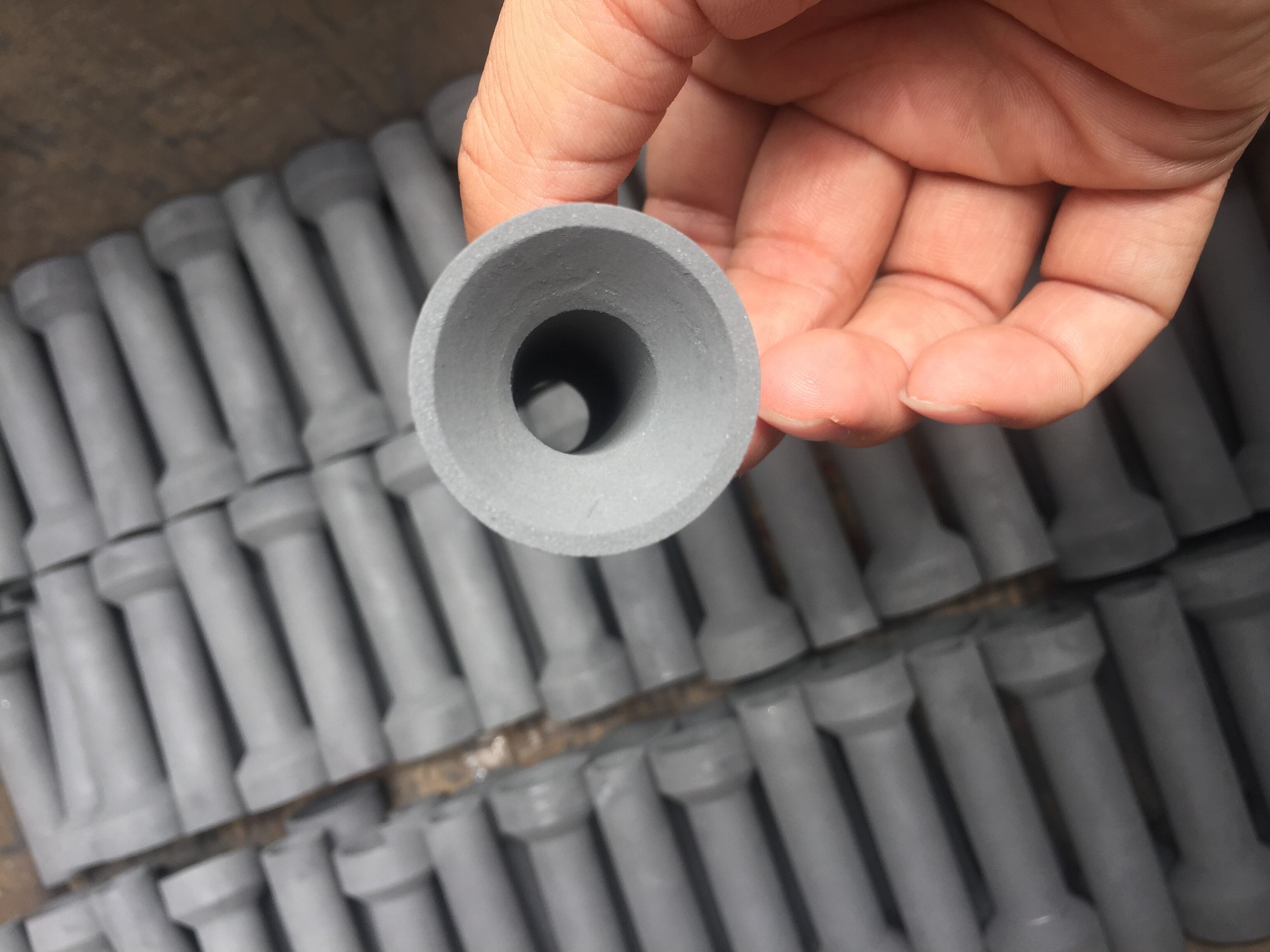

Super wear resistant SISIC silicon carbide sand blasting nozzle for ball mill
have high hardness and severe wear resistance and other characteristics.This kind of wear resistance product can be used to make sandblasting silicon carbide nozzle,water sand cutting nozzle and coal nozzle for steel mills,thermal power plants and other industries,its service life is 5-10 times that of ordinary materials.There are many kinds of ceramic materials used as nozzles,and commonly used are alumina,silicon carbide ceramics,etc.Alumina ceramic nozzles have mature production technology and lower price,but due to their low hardness,their wear resistance and erosion resistance are poor,so the alumina ceramic nozzles often used in occasions where the sand blasting load is not large.The service life of silicon carbide ceramics is 3 to 5 times that of alumina ceramics,due to the high hardness, corrosion resistance and high temperature strength of silicon carbide ceramics,makes silicon carbide ceramics widely used in many directions,such as refractories, seals, nozzles and so on.Due to most of the nozzles currently used in the factory are made of steel material,they have bad erosion resistance and wear wear resistance,during the working process of the sandblasting machine, the inner circular surface of the nozzle will wear and become elliptic,so it will greatly affected the quality of sandblasting machines,and it needs to be replaced after working for an hour or two.But the silicon carbide ceramic parts have good wear resistance,high erosion resistance,longer operation life and high work efficiency,such as sandblasting silicon carbide nozzle.
Property:
→Superior high temperature resistance,wear resistance and oxidation resistance.
→Excellent straightness,less than 1‰.
→High uniformly distributed loading capacity,more than 4997 kg.m/L.
→OEM accepted.
→Easy to install.
→Various shape accepted,Germany imported technology and materials.
→Longer service life ( about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane).
Main Application
Application of Slip casting corrosion resistance silicon carbide tube with high thermal shock resistance:
This kind of wear resistance product can be used to make sandblasting silicon carbide nozzle,water sand cutting nozzle and coal nozzle for steel mills,thermal power plants and other industries
have high hardness and severe wear resistance and other characteristics.This kind of wear resistance product can be used to make sandblasting silicon carbide nozzle,water sand cutting nozzle and coal nozzle for steel mills,thermal power plants and other industries,its service life is 5-10 times that of ordinary materials.There are many kinds of ceramic materials used as nozzles,and commonly used are alumina,silicon carbide ceramics,etc.Alumina ceramic nozzles have mature production technology and lower price,but due to their low hardness,their wear resistance and erosion resistance are poor,so the alumina ceramic nozzles often used in occasions where the sand blasting load is not large.The service life of silicon carbide ceramics is 3 to 5 times that of alumina ceramics,due to the high hardness, corrosion resistance and high temperature strength of silicon carbide ceramics,makes silicon carbide ceramics widely used in many directions,such as refractories, seals, nozzles and so on.Due to most of the nozzles currently used in the factory are made of steel material,they have bad erosion resistance and wear wear resistance,during the working process of the sandblasting machine, the inner circular surface of the nozzle will wear and become elliptic,so it will greatly affected the quality of sandblasting machines,and it needs to be replaced after working for an hour or two.But the silicon carbide ceramic parts have good wear resistance,high erosion resistance,longer operation life and high work efficiency,such as sandblasting silicon carbide nozzle.
→Superior high temperature resistance,wear resistance and oxidation resistance.
→Excellent straightness,less than 1‰.
→High uniformly distributed loading capacity,more than 4997 kg.m/L.
→OEM accepted.
→Easy to install.
→Various shape accepted,Germany imported technology and materials.
→Longer service life ( about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane).
Application of Slip casting corrosion resistance silicon carbide tube with high thermal shock resistance:
This kind of wear resistance product can be used to make sandblasting silicon carbide nozzle,water sand cutting nozzle and coal nozzle for steel mills,thermal power plants and other industries
