High hardness SIC lining tube silicon carbide ceramic grinding barrel for sand mill

1.Corrosion resistance,high precision surface
2.Wear resistance,high strength
3.Oxidation resistance,long application life
4.light weight,easy to be made into many kinds of forms
5.Unblocked
6.High temperature tolerance(under1380℃)

Inquiry

Description

Application:

High hardness SIC lining tube silicon carbide ceramic grinding barrel for sand mill is a new type of ceramic product, which can replace imported products. It is mainly used in the sand mill industry, machinery industry, mining industry, and high-wear machinery bushing.

Packing & Delivery

To better ensure the safety of High hardness SIC lining tube silicon carbide ceramic grinding barrel for sand mill, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Silicon carbide ceramic sand mill inner barrel with light weight, high hardness, corrosion resistance, high temperature resistance and other properties. It’s better than traditional zirconia ceramis in resistance to erosion and wear(low abrasion value can prevent material from pollution).The coefficient of thermal conductivity is 130 W/m.k (20 ℃),it is the best cooling effect ceramic material which has the advantages to control the temperature rise in the process of equipment operation. The barrel is through the casting or

isostatic pressing molding forming technology , can be effective isolation lumen and outer shell, make it is not subject to corrosion and scouring. Service life is 5 to 10 times of general wear-resisting material, integrated operation cost is low.

Parameter of product

Item	Unit	Data
Temperature of application	℃	≤1380℃
Density	g/m³	≥3.02 g
Open porosity	%	<0.1
Bending strength	Mpa	250(20℃)
Bending strength	Mpa	280(1200℃)
Modulus of elasticity	Gpa	330(20℃)
Modulus of elasticity	Gpa	300(1200℃)
Thermal conductivity	W/m.k	45(1200℃)
Coefficient of thermal expansion	K-1x10-6	4.5
Rigidity		13

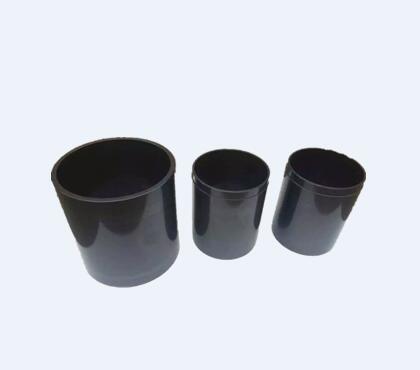

Product Show

Wear-resistant sand mill inner barrel use in sand mill machine .The coefficient of thermal conductivity is 130 W/m.k (20℃),it is the best cooling effect ceramic material which has the advantages tocontrol the temperature rise in the process of equipment operation.

Application:

Sisic Sand mill inner barrel is the best cooling effect ceramic material which has the advantages to control the temperature rise in the process of sand mill operation.

Advantages:

1. High quality products silicon carbide ceramic solutions
2.Perfect testing method
3.Competitive prices and best service
