Fine technical RBSiC (SiSiC) Ceramic Spares for pumps

Reaction sintered Silicon carbide vane

Design features:

1.High abrasion resistance, high surface accuracy
2.Excellent corrosion resitance, high hardness
3.Antioxidant with long service life
4.Non-blocking structure
5. High temperature resistance
6. Slip Casting, may be made into various shapes

Inquiry

Description

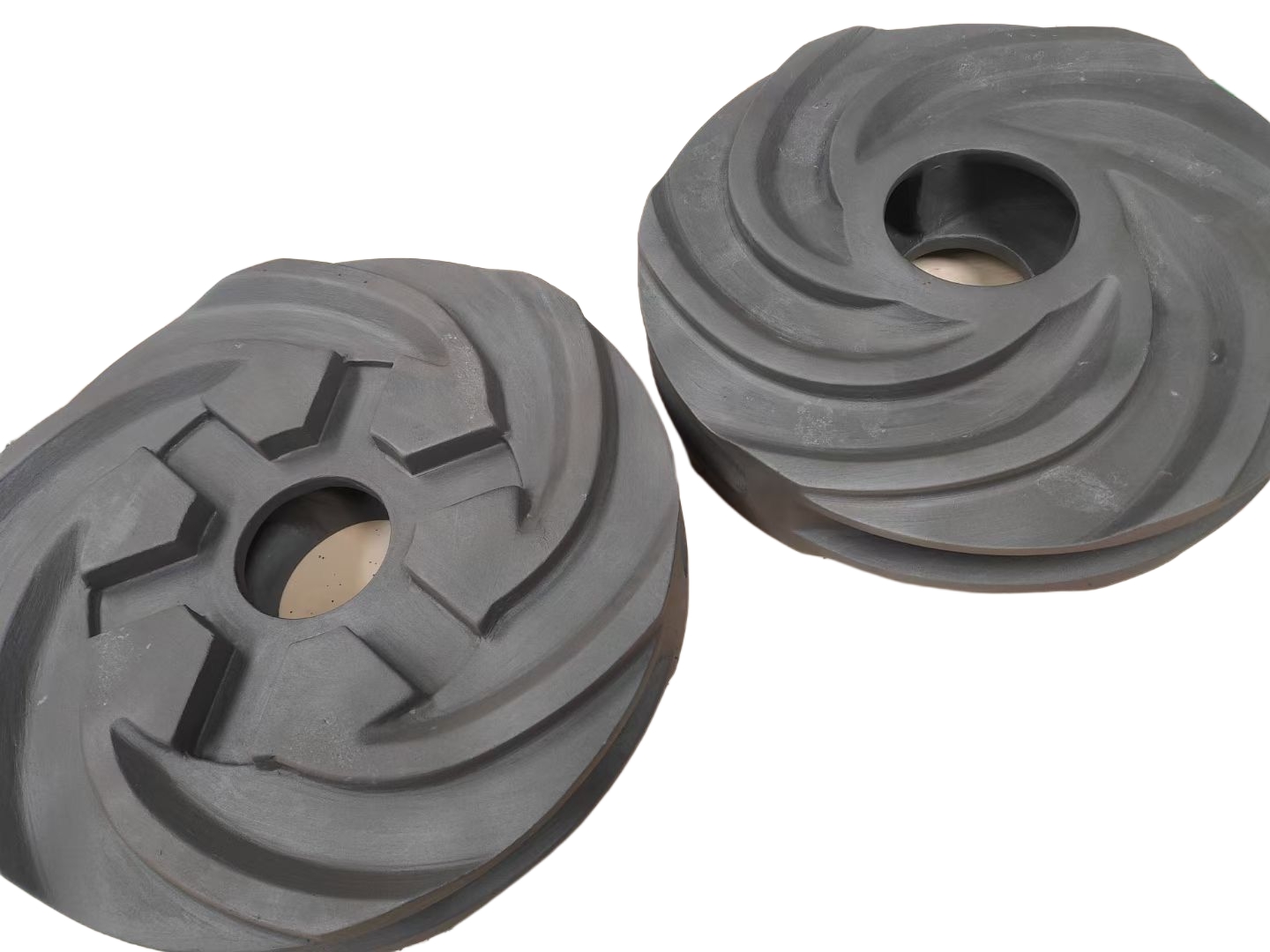

silicon carbide SIC composite impeller/runner/vane Fine technical RBSiC (SiSiC) Ceramic Spares for pumps

Ceramic spares components mainly include pump sleeves, baffles, impellers, sealing rings, outlet pipes and other overflow parts combined with a new layer of wear-resistant ceramic slurry transmission equipment.

Its performance characteristics are mainly manifested in super-hard and wear-resistant. It can be used for different working conditions and conveying media. The wear-resistant service life is more than 3 times higher than that of high-chromium cast iron, wear-resistant cast steel and rubber lining; Manufactured by composite technology, ceramic is used for the flow surface, and common metal is used for the base part, and the cost is significantly reduced. In terms of after-sales maintenance, ceramic pumps have advantages that other types of wear-resistant and wear-resistant pumps do not have, and maintenance is convenient.

If the ceramic lining is seriously worn, the composite wear-resistant layer can be cleaned away, and another layer of ceramic can be used continuously without scrapping the entire component.

This not only improves the utilization rate of the equipment, but also reduces the production cost of the enterprise. At the same time, the factory also Provide various ceramic pump accessories and replacement parts for ceramic pump wearing parts, such as ceramic impeller, shaft sleeve, static ring, machine seal, various fluorine rubber gaskets, main shaft, pump casing, pump cover, etc.

RBSiC (SiSiC) sisic silicon carbide vanes have superior characteristic,such as wear resistance,

corrosion resistance, high temperature tolerance, oxidation resistance, perfect efficiency of sealing,

long time service life. .The series of products are widely used in the fields of chemical industry, oil industy, enviromental protection, etc for melting or sintering products.

RBSiC (SiSiC) has also been successfully in many applications

--Metallurgy

--Chemical Idustry

--High corrosion Liquids Transport

--Machinery and Sealing

--Automobile industry

--Paper Making

--Aeronautics and Astronautics

--Medical Industry

--Food Processing

Technical Parameter of Reaction Bonded Silicon Carbide

item

unit

data

temperature of application

C

1380

density

g/cm3

>=3.02

open porosity

%

<0.1

bending strength

Mpa

250(20C)

Mpa

280(1200C)

modulus of elasticity

Gpa

330(20C)

Gpa

300(1200C)

thermal conductivity

W/m.k

45(1200C)

coefficient of thermal expansion

K-1*10-6

4.5

Mohs hardness

13

Acid and alkali resistance

Excellent

item	unit	data
temperature of application	C	1380
density	g/cm3	>=3.02
open porosity	%	<0.1
bending strength	Mpa	250(20C)
	Mpa	280(1200C)
modulus of elasticity	Gpa	330(20C)
	Gpa	300(1200C)
thermal conductivity	W/m.k	45(1200C)
coefficient of thermal expansion	K-1*10-6	4.5
Mohs hardness		13
Acid and alkali resistance		Excellent
