RbSiC SiSiC Silicon Carbide Flame Tubes and Diffusers

RbSiC SiSiC ceramic radiant tubes are used for annealing for steel plants

Inquiry

Description

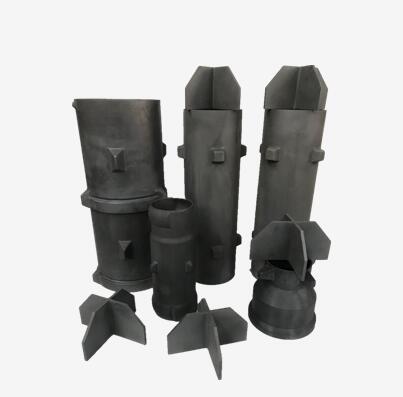

Silicon Carbide Flame Tubes and Diffusers

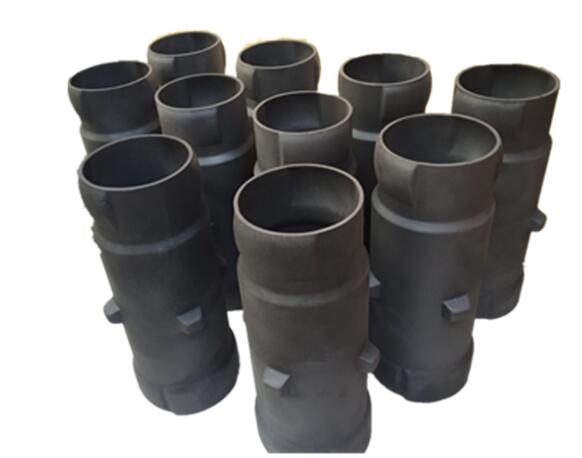

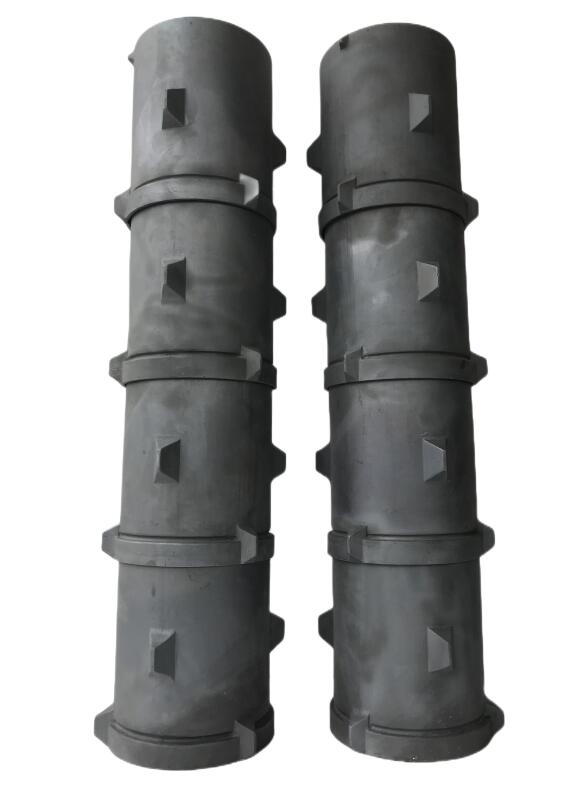

Silicon carbide ceramic radiant tube,RbSiC SiSiC ceramic radiant tube

Reaction-bonded silicon carbide heat exchange tube, reaction-bonded silicon carbide radiant tube inner tube and outer tube assembly, applied to heat radiation indirect heating system. Reaction-bonded silicon carbide heat radiation indirect heating system is applied to some industrial furnaces, such as roller furnace, bogie furnace, etc. in such industries as steel and iron, stainless steeland non-ferrous metals.

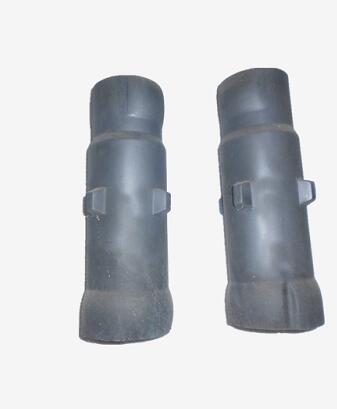

Silicon Carbide Flame Tubes and Diffusers

The flame tubes (diffusers) function as a guide for the flow of combustion and combustion gas in single-ended radiant tube applications. The tube is a uniquely designed twisted tape flame tube, modified and developed for use in U-tubes and W-tubes. It protects radiant tubes by eliminating hot spots caused by direct flame impingement, ultimately increasing the service life of the radiant tube.

Sunshine shape can be custom engineered to promote excellent temperature uniformity.

Flame Tubes and Diffusers Features and Benefits

· Flame Tubes

Benefits

Made of robust silicon carbide
Operating temperatures up to 1,380 °C
Long service life
Advanced silicon carbide microstructures provide high thermal conductivity and shock resistance
Industry-leading diameter and length
Suitable for most furnace applications
Thin-wall designs increase thermal performance and enable design flexibility
