Feature:
High hardness (3rd after diamond)
Alkali & corrosion resist
Long service life
Make by your drawing
Inquiry
|

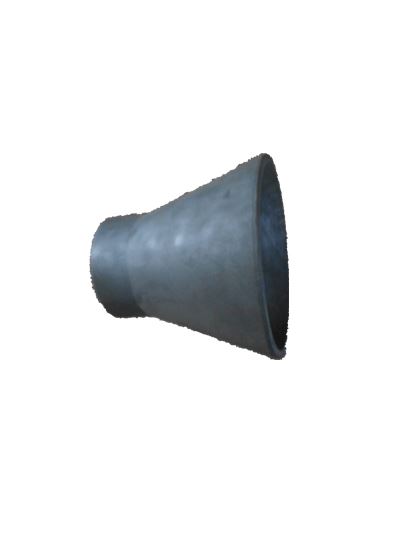

Adavantages of Reaction bonded silicon carbide SIC hydrocyclone spigot bushing tube:
Good wear resistance
Its Moh’s hardness is as high as 13, equal to HRC90, therefore it can be used to transport the media in metallurgy, electric power, mine, coal and so on. It has been proved by industrial operation that the wear life of Reaction bonded silicon carbide SIC hydrocyclone spigot bushing tube is ten times or dozen times of that of the hardened steel.
Small running resistance
The Reaction bonded silicon carbide SIC hydrocyclone spigot bushing tube has very smooth surface. The inner surface smoothness of Reaction bonded silicon carbide SIC hydrocyclone spigot bushing tube is better than that of any metal pipe tested by related inspection unit, and the coefficient of resistance is 0.0193, which is slightly lower than that of the seamless pipe.
Corrosion resistance and anti -fouling
Because Reaction bonded silicon carbide SIC hydrocyclone spigot bushing tube is neutral material. So it has the characteristics of acid and alkali resistance, seawater corrosion resistance, and athe characteristics of anti-scaling.
Good heat resistance and thermal shock resistance
RBSiC silicon carbide cyclone cone lining tube with high anti-wear property is a single stable crystalline structure which can be used under the temperature range from -50 ℃ to 1380℃. The linear expansion coefficient of the material is 6-8 x 10-6/0C, which is about 1/2 of the steel pipe.
Low project cost
Reaction bonded silicon carbide SIC hydrocyclone spigot bushing tube are light in weight and suitable in price.
Convenient installation and construction
Because Reaction bonded silicon carbide SIC hydrocyclone spigot bushing tube is light in weight and good in welding performance. Therefore, the welding, flange and quick connection can be used in construction and installation.
Shapes of Reaction bonded silicon carbide SIC hydrocyclone spigot bushing tube
Thickness available: 6mm - 25mm
Reaction bonded silicon carbide SIC hydrocyclone spigot bushing tube can be made into pipe, cone, spray nozzle,elbow, three links, wear resistant lining tiles, seals, rings and so on.
Remark: Other sizes and shape are available upon requests.
More Reaction bonded silicon carbide SIC hydrocyclone spigot bushing tube that you may interest:
Other RBSIC silicon carbide products for refactory, heat resistant or desulphurization
The main products of RBSIC silicon carbide products for refactory, heat resistant or desulphurization are: cross beams, rollers, cooling air pipe,burner nozzles,thermocouple protecting tubes,temperature measuring parts, radiant tubes, desulfurization nozzles, crucible,batts, and special shaped structural parts.
The RBSIC ceramic products are widely used in high temperature ceramic kiln,steel quench furnace,large boiler,power plant desulfurization dusting equipment and high-tech military equipment. The industry involves but not limited to daily-use ceramics, sanitary ceramics,porcelain insulator,crystallite glass, metallurgy, magnetic materials, electric power, chemical industry, steel, petroleum, machinery, military industry,etc.
