High hardness Silicon carbide SiSiC Ceramic Sandblasting Nozzles
Features:
High temperature resistance
Great corrosion resistance
Excellent thermal shock stability
High strength
High wear resistance
Long lifetime span

Inquiry


Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description





Reaction bonded silicon carbide wear resistant sandblasting nozzle





Product Descriptio
SiSiC Material

1. Superior wear resistance
2. Extreme hardness
3. Corrosion Resistance
4. High temperature tolerance

RBSiC (SiSiC) Sandblasting Nozzles have superior characteristics such as wear resistance, extreme hardness, corrosion resistance, high temperature tolerance, oxidation resistance, long time service life.

The series of products are widely used in all kinds of equipments for sandblasting.

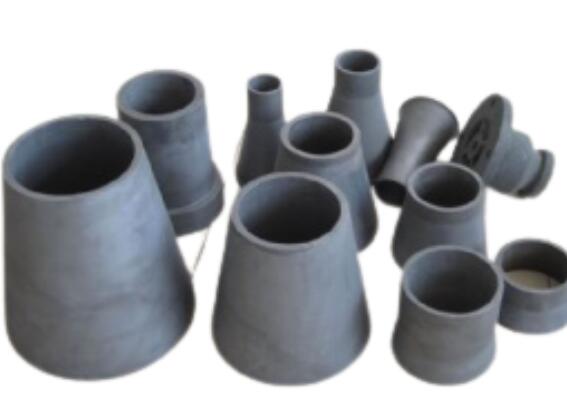

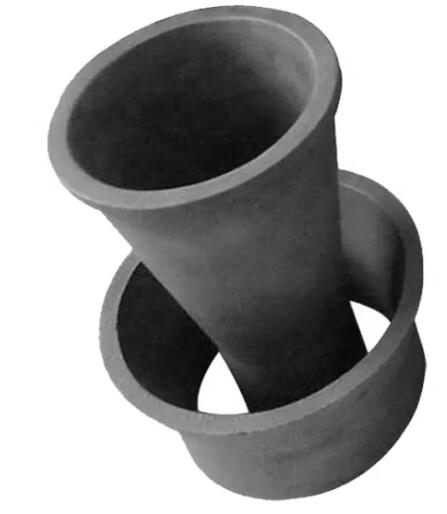

Reaction bonded silicon carbide wear resistant conical tube / sic lining tube with high strength,high wear resistance, corrosion resistance, high temperature resistance, which has been widely used as the liners or parts in coarse particles classification, concentration, papermaking, chemical, electronics, washing and mineral processing industry.







1.Technical parameters of Reaction bonded silicon carbide wear resistant conical tube / sic lining tube :





ITEM





UNIT





DATA



Temperature





1380



Density



g/cm³



≥3.02



Open Porosity



%



<0.1



Moh's Scale of Hardness







13



Bending Strength



MPa



250   (20℃)



MPa



280   (1200℃)



Modulus of Elasticity



GPa



330 (20℃)



GPa



300 (1200℃)



Thermal Conductivity



W/m.k



45 (1200℃)



Coefficient of thermal expansion





k-1×10-6



4.5



Acid Alkaline -proof







Excellent









2.Property:



Superior wear resistance, impact resistance and corrosion resistance



Excellent flatness and temperature resistance up to 1380℃



Excellent oxidation resistance



Good dimensional control of complex shapes



Easy installation



Longer service life ( about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane)









3. Applicaion of wear resistant conical tube / sic lining tube  :



Reaction bonded silicon carbide wear resistant conical tube / sic lining tube  has high hardness, high temperature, abrasion resistance, oxidation resistance, acide and alkali resistance characteristics,which is widely used for wear-resisting lining of hydraulic cyclones, flue gas desulphurization pipes and coal slurry conveyor pipelines.







Thickness available: 4mm - 20mm



Shape available: Tubes , Tee pipes, Elbows, Cones, Rings and so on.









4. Other RBSiC / SiSiC reaction bonded silicon carbide products:



The main products of reaction bonded silicon carbide ceramics are: cross beams, rollers, coling air pipe,burner nozzles,thermocouple protecting tubes,temperature measuring parts, radiant tubes, desulfurization nozzles, crucible,batts, wear resistant lining materials,plates, seals, rings and special shaped structural parts.







The RBSIC ceramic products are widely used in high temperature ceramic kiln,steel quench furnace,large boiler,power plant desulfurization dusting equipment and high-tech military equipment. The industry involves but not limited to daily-use ceramics, sanitary ceramics,porcelain insulator,crystallite glass, metallurgy, magnetic materials, electric power, chemical industry, steel, petroleum, machinery, military industry,etc.









5. Packing





Company Information



As a professional supplier we can promptly supply tailor-made wear protection solutions according to the actual working conditions and requirements to solve the customer’s common problems or particular problems in bulk materials handling or conveying, including to choose the appropriate wear resistant materials, connection method, reasonable and optimum design, stable hand high quality manufactured and perfect after-sales service, all of which are aimed to help users to improve the operational efficiency and service life of devices or equipments.



Our company has a rigorous quality control system to guarantee stable performance and proven quality, our professional inspection team will carry out full course tracking from raw material selection, batching, production process management to semi and finished products test. Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our products have been approved and accepted by clients and users from Australia, South Korea, India, Russia, South Africa, Turkey, USA, France and etc.





Our Services



  Professional:  More than ten years of experience in production, more than 5 years of experience in foreign trade export, we will supply prompt technical support on pre- and after sales.









 ◊ High Quality:Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our inspection engineers carry out full course tracking in the whole production.







 ◊ Focus on Details: No matter how small questions or problems shall be replied and help to solve by our members, even for the small orders.







◊ Price &Discount: We can provide competitive price and discount for large quantity.







◊ OEM : Customized designs, sizes and logos are acceptable.
