Engineering ceramic material RBSiC (SiSiC) Plates / boards used in highwear applications

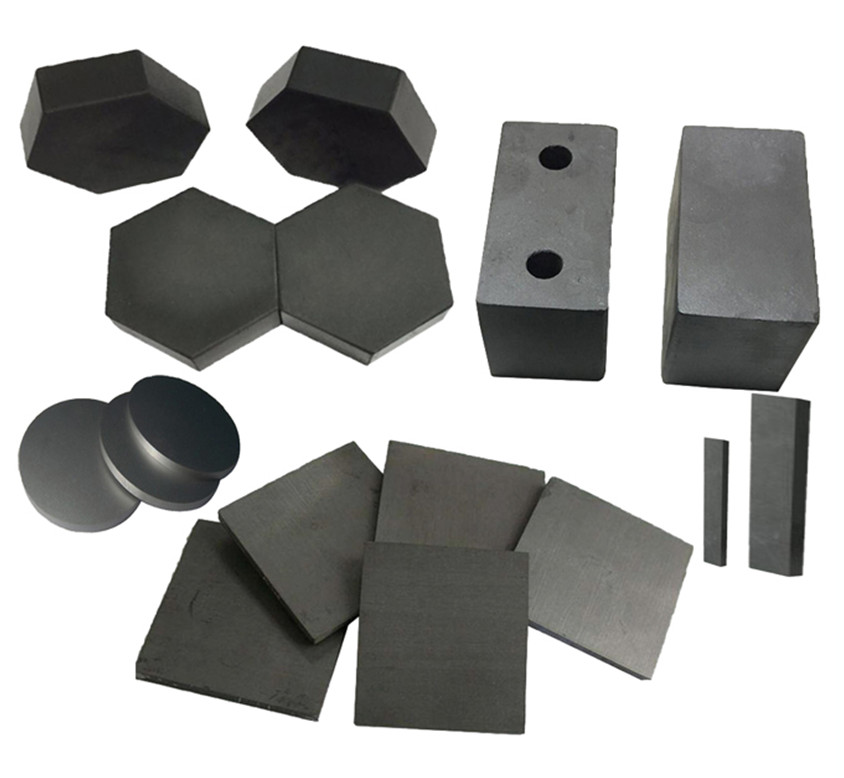

SiC Plates
1.High temperature tolerance
2. Thermal shock resistance
3. Corrosion resistance
4. Thermal conductivity

Inquiry


Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description



China supplier impact resistance RBSiC / SiSiC silicon carbide sic plates / tiles / sheets with high hardness, wear resistantce  oxidation resistance are widely used in papermaking, chemical, electronics, pharmaceutical and other ink jet, lithium battery materials, electronic pulp nano-ceramic sanding machines.



1.Technical parameters of RBSiC / SiSiC silicon carbide sic plates / tiles / sheets :

ITEM

UNIT

DATA

Temperature

1380

Density

g/cm³

≥3.02

Open Porosity

%

<0.1

Moh's Scale of Hardness



13

Bending Strength

MPa

250   (20)

MPa

280   (1200)

Modulus of Elasticity

GPa

330 (20)

GPa

300 (1200)

Thermal Conductivity

W/m.k

45 (1200)

Coefficient of thermal expansion

k-1×10-6

4.5

Acid Alkaline -proof



Excellent



2.Property:

 Superior wear resistance, impact resistance and corrosion resistance

◊ Excellent flatness and temperature resistance up to 1380

 Excellent oxidation resistance

 Good dimensional control of complex shapes

 Easy installation

 Longer service life ( about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane)



3. Specification of RBSiC / SiSiC silicon carbide sic plates / tiles / sheets:



 Thickness available: 4mm - 45mm

Remark: Other sizes and shape are available upon requests.



4.Other RBSiC / SiSiC silicon carbide products:

The main products of reaction bonded silicon carbide ceramics are: cross beams, rollers, coling air pipe,burner nozzles,thermocouple protecting tubes,temperature measuring parts, radiant tubes, desulfurization nozzles, crucible,batts, wear resistant lining materials,plates, seals, rings and special shaped structural parts.
