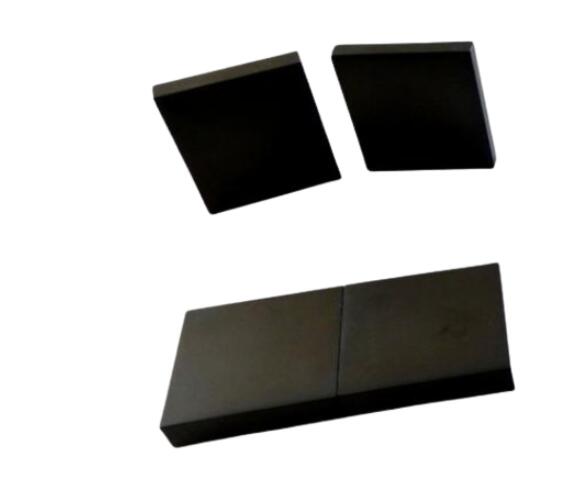

Wear resistant sic tiles / RBSiC / SiSiC silicon carbide plates / boards / sheets for hydrocyclones
Main features:

1.High refractoriness.

2.Good thermal conductivity.

3.Small expansion coefficient.

4.High strength.

5.Ultra thin,energy saving.

Inquiry


Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description

Wear resistant sic tiles / RBSiC / SiSiC silicon carbide plates / boards / sheets

is a combination of high purity silicon carbide and ultrafine powder,through vibration molding,high temperature sintering,with good high temperature thermal conductivity and bearing,applicable for all kinds of architectural ceramics,sanitary ceramics,household ceramics,porcelain refractories,powder metallurgy sintering furnace and fine ceramic kiln furniture.The reaction sintered silicon carbide shelves texture hard and brittle,with small expansion coefficient,high cold-resistance and heat-resistance,not easily deformed,good chemical stability,strong acid resistance,thin products but high bulk density,energy-saving effect is remarkable,to achieve a wear resistance,corrosion resistance,anti-fouling in one of the comprehensive performance,suitable for high wear,high corrosion environment,silicon carbide shelves is a reliable high-tech product.



Technical parameters

Item

Unit

Data

Max temperature of application

1380

Density

g/cm3

≥3.02

Open porosity

%

<0.1

Bending strength

Mpa

250(20)

Mpa

280(1200)

Modulus of elasticity

Gpa

330(20)

Gpa

300(1200)

Thermal conductivity

W/m.k

45(1200)

Coefficient of thermal expansion

K-1×10-6

4.5

Rigidity



13

Acid alkaline-proof



Excellent

Property:

Superior high temperature resistance,wear resistance and oxidation resistance.

Excellent straightness,less than 1‰.

High uniformly distributed loading capacity,more than 4997 kg.m/L.

OEM accepted.

Easy to install.

Various shape accepted,Germany imported technology and materials.

Longer service life ( about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane).



Packaging & Shipping

 The packing type of silicon carbide product is plywood box with plastic foam inside.



Related Products

Many products can be made from siliconized silicon carbide such as:beams,rollers,burner nozzle,radiant tube,desulfurization nozzles,battes,plates,wear resistant lining materials,cooling air pipes,thermocouple protection tube,bushing,crucible,sagger,heat exchanger,sealing parts and special shaped parts,etc.
