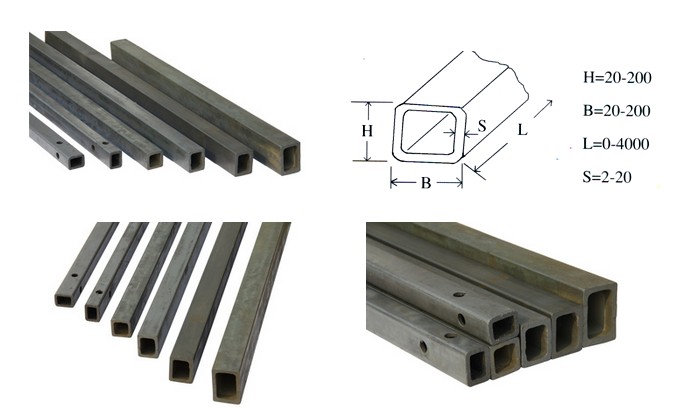

Regular dimensions and bearing capacity of  Refractory silicon carbide SIC square beam tube for shuttle kiln

Note: The values shown above are the typical result from tested parts, not representing the promise for all of our Reaction bonded silicon carbide SIC square tubing beam for industrial kiln

Size of Section(mm)		Wall Thickness(mm)	Uniformly Distributed Loading(kg.m/L)
W Side	H Side		W Side	H Side
30	30	5	147	147
30	40	5	235	190
40	40	6	330	330
50	50	6	567	567
50	60	6	748	662
50	70	8	1143	902
60	90	9	2120	1598
80	80	7	1869	1869
100	100	8	3416	3416
110	110	10	4997	4994

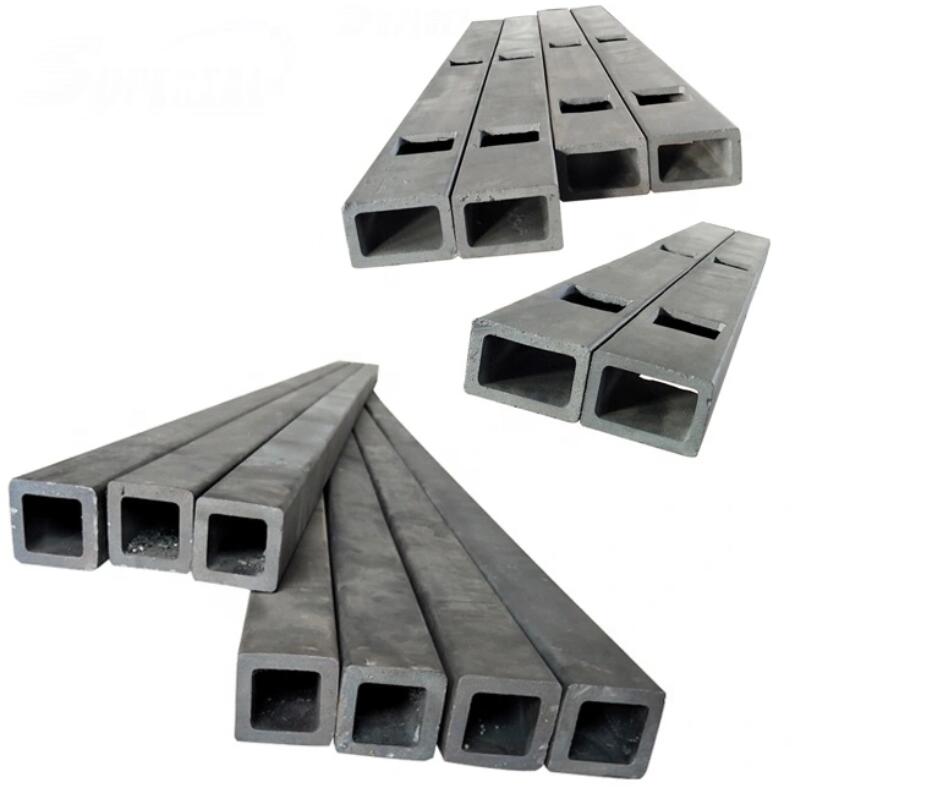

Application of Tunnel kiln furniture Refractory silicon carbide SIC square beam tube for shuttle kiln



Refractory silicon carbide SIC square beam tube for shuttle kiln  are widely used in high temperature ceramic kiln,steel quench furnace,large boiler,power plant desulfurization dusting equipment and high-tech military equipment. The industry involves but not limited to daily-use ceramics, sanitary ceramics,porcelain insulator,crystallite glass, metallurgy, magnetic materials, electric power, chemical industry, steel, petroleum, machinery, military industry,etc.



 Main Application

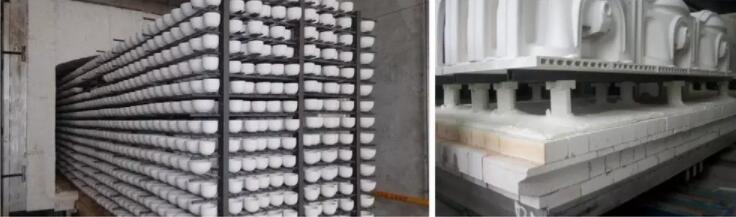

 Application of silicon carbide beam:





 Other kiln furnitures made by silicon carbide ceramic

Besides Refractory silicon carbide SIC square beam tube for shuttle kiln, we also produce other kiln furnitures including RBSIC/SISIC silicon carbide nozzle tubes, spiral nozzle tube, swirl nozzle tube,  oxide bonded SIC silicon carbide batts/setter plate and RBSIC cooling pipes.



 Wear resistant RBSIC/SISIC silicon carbide products

Because our RBSIC/SISIC silicon carbide ceramics have the advantages of excellent wear resistance, corrosion resistance and long service life, it can also be made into wear resistant linings which can be easily installed in  processing pipes or cyclones.
