Various sizes available
Features
High strength,
High hardness,
High wear resistance,
High temperature resistant,
Strong corrosion resistance,
Oxidation resistance,
Good thermal shock resistance,
Good thermal conductivity,
Heat shock resistance to high temperature creep resistanc
Inquiry
|

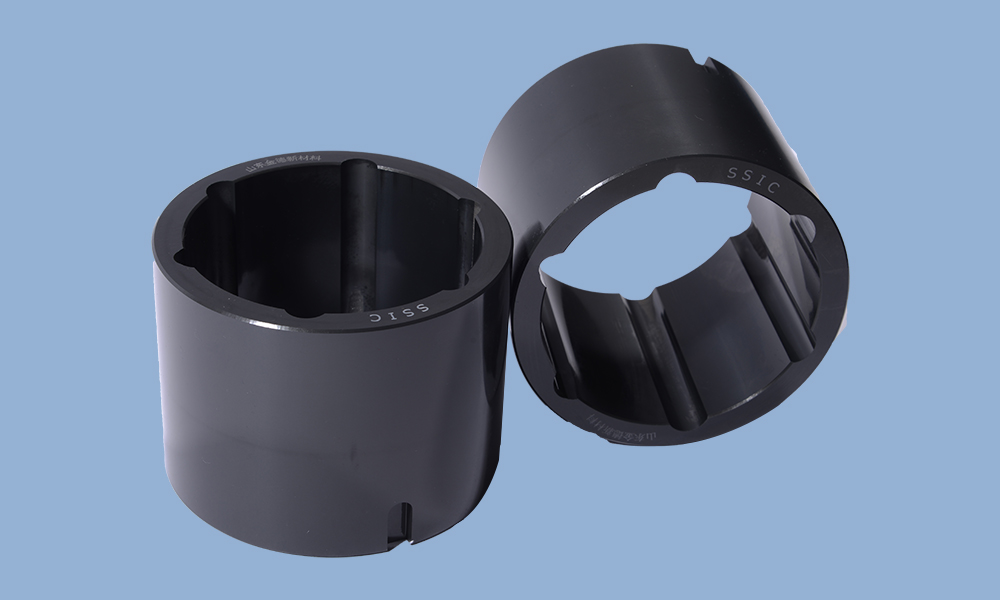

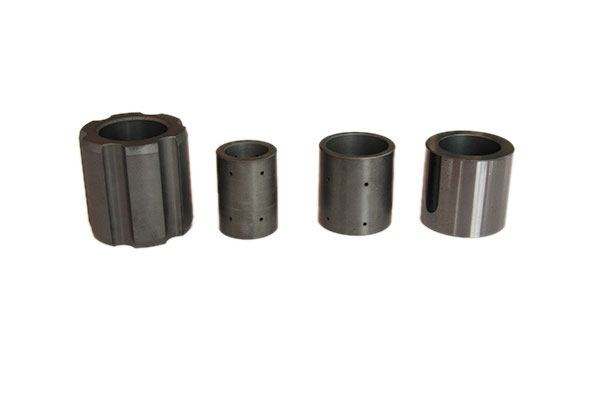

Factory price SISIC/RBSIC ceramic tube/bushing/sleeve

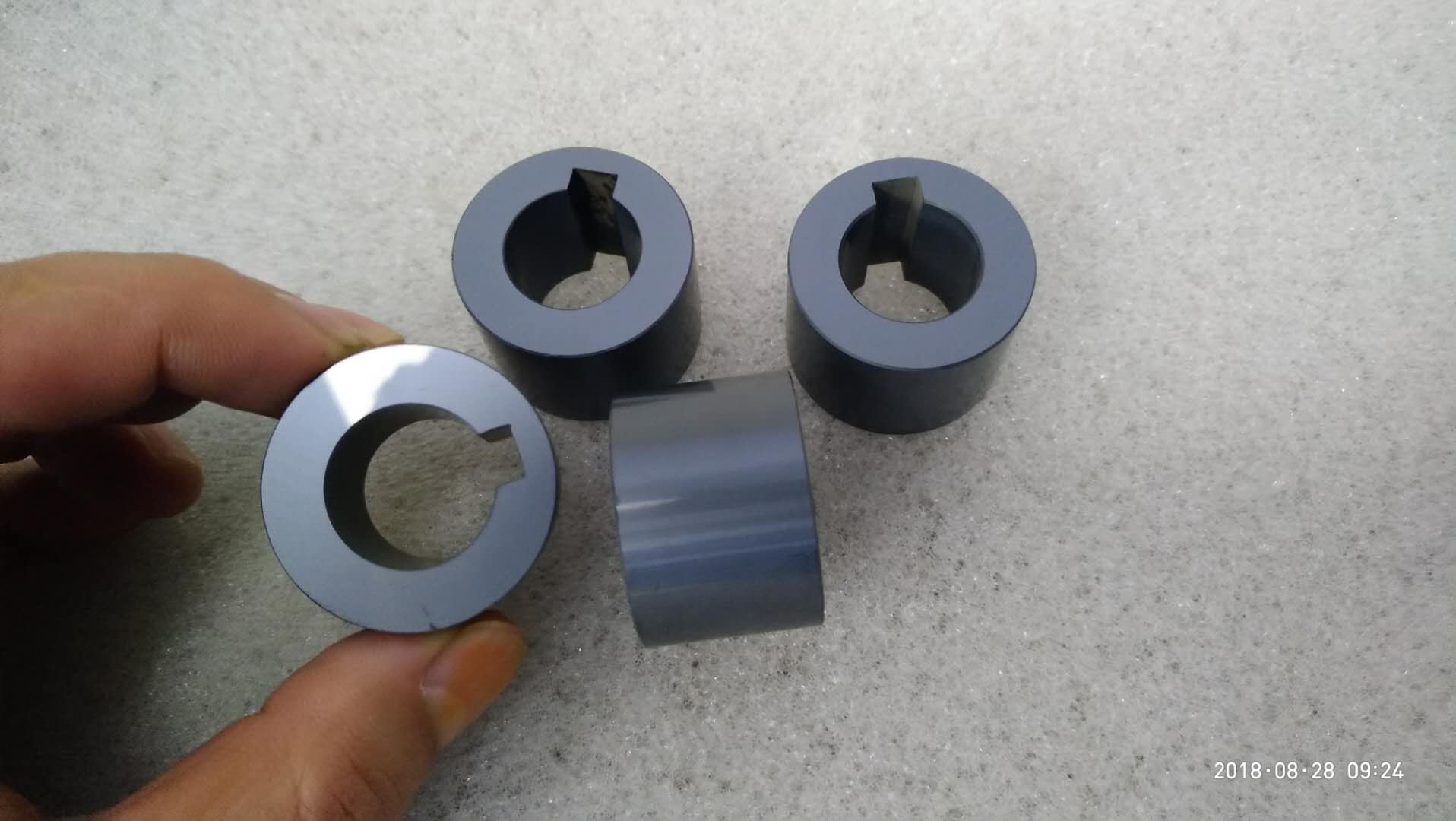

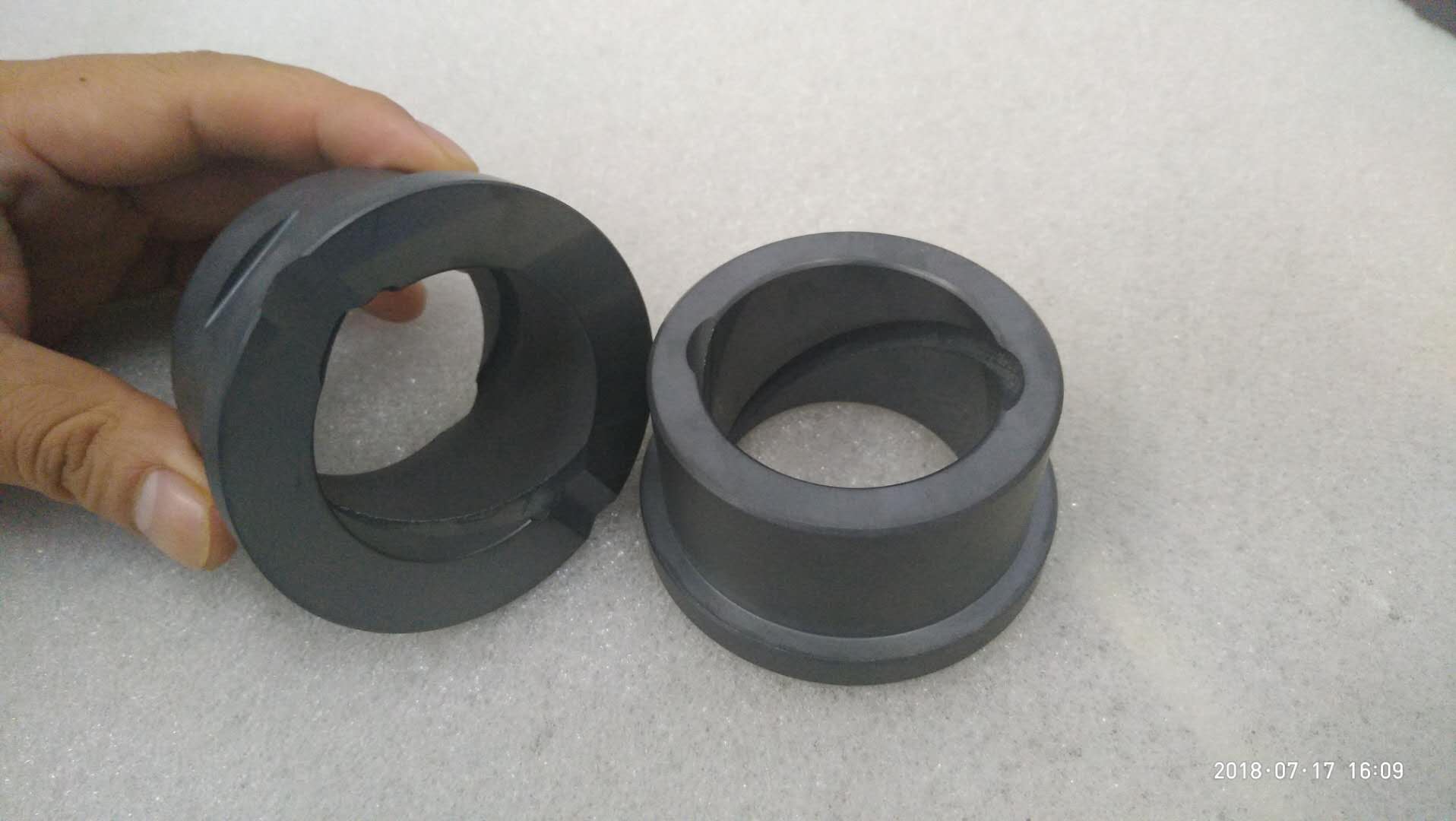

We can make normal straight axle sleeve, cylindrical axle sleeve with slot, axle sleeve with convex stage, axle sleeve with slot and convex stage, non-standard axle sleeve etc. We are produce the products according to the drawings and requirements of our customers. we also recommend, design and develop new type against the customers needs.
The parameter of our product:
| Parameter | SSiC | SISIC |
| Purity( % ) | >98 | >90 |
| Hardness( HRA ) | ≥92 | ≥90 |
| Grain Size( um ) | 0.5~0.7 | 8~20 |
| Density( g/cm3 ) | 3.10~3.15 | 3.03~3.08 |
| Bend Strength( MPa ) | 400-580 | 350-450 |
| Compressive Strength(MPa) | >2200 | >2000 |
| Fracture Toughness( MPA ) | 3.05-4.6 | 4.3 |
| Elastic Modulus( GPa ) | >400 | >360 |
| Thermal Conductivity(W/M.K) | 100~120 | 50~100 |
| Coefficient of heat Expansion( L/°C ) | 4.02x10-6 | 4.3x10-6 |
| Poisson Ratio | 0.14 | 0.15 |
Why chose us?
|
Our advantages
|
High quality |
|
Competitive price |
|
| Strict delivery time | |
| Good after-sales service | |
|
Professional producer for 10 years |
|
|
Gold supplier 3th year |
|
|
Strict quality control |
Applications of ceramic silicon carbide:
With silicon carbide ceramics the material properties remain constant up to temperatures above 1,400°C. The high Young’s modulus > 400 GPa ensures excellent dimensional stability. These material properties make silicon carbide predestined for use as a construction material. Silicon carbide masters corrosion, abrasion and erosion as skillfully as it stands up to frictional wear. Components are used in chemical plants, mills, expanders and extruders or as nozzles, for example.
“The variants SSiC (sintered silicon carbide) and SiSiC (silicon infiltrated silicon carbide) have established themselves. The latter is particularly suitable for the production of complex large-volume components.”
Silicon carbide is toxicologically safe and can be used in the food industry. Another typical application for silicon carbide components is dynamic sealing technology using friction bearings and mechanical seals, for instance in pumps and drive systems. Compared to metals, silicon carbide enables highly economical solutions with longer tool life when used with aggressive, high-temperature media. Silicon carbide ceramics are also ideal for use in demanding conditions in ballistics, chemical production, energy technology, paper manufacturing and as pipe system components.
