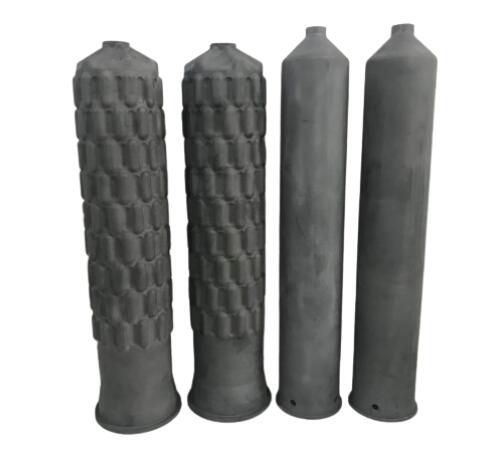

Silicon carbide RBSIC ceramic tube burner nozzle / burner pipe for gas tube furnace
with the features of high temperature resistance,extreme cold and heat resistance,long service life,no cracking and easy to process into various shapes,it is an ideal fire kiln furniture for tunnel kiln,shuttle kiln and roller kiln, also widely used in industrial furnaces with direct fire heating and radiant tube indirect heating system. Silicon carbide burner nozzle is an ideal combustion chamber for various industrial furnaces such as gas and fuel furnaces.Reaction sintering silicon carbide burner nozzle is composed of α-SIC powder, graphite powder,mixed additives and organic binders,and sintering in a 1700 degree vacuum furnace to fully react the silicon carbide powder with carbon.The final porosity is almost 0,in particular, some customers' burning substances are kerosene, diesel, etc.Low porosity can prevent oil leakage,our silicon carbide burner nozzle have helped many customers solve the problem.
| Item | Unit | Data |
| Max temperature of application | ℃ | 1380 |
| Density | g/cm3 | ≥3.02 |
| Open porosity | % | <0.1 |
| Bending strength | Mpa | 250(20℃) |
| Mpa | 280(1200℃) | |
| Modulus of elasticity | Gpa | 330(20℃) |
| Gpa | 300(1200℃) | |
| Thermal conductivity | W/m.k | 45(1200℃) |
| Coefficient of thermal expansion | K-1×10-6 | 4.5 |
| Rigidity | 13 | |
| Acid alkaline-proof | Excellent |
→Superior high temperature resistance,wear resistance and oxidation resistance.
→Excellent straightness,less than 1‰.
→High uniformly distributed loading capacity,more than 4997 kg.m/L.
→OEM accepted.
→Easy to install.
→Various shape accepted,Germany imported technology and materials.
→Longer service life ( about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane).
Reaction sintering silicon carbide burner nozzle is the best product to repalce imports and has already adopted by most well-known domestic and foreign furnace companies and manufactures,suitable for ceramic, chemical, glass, metallurgy and other industries,and also suitable for industrial furnaces using natural gas, liquefied gas, coal gas, diesel, etc.The maximum using temperature is divided into 1650° c and 1380° c.Sub-firearms most obviously regulate the temperature of wide-body kilns,when used with a burner,it can guarantee complete combustion and effective control the cross-section temperature difference of the furnace,also effectively control the temperature equilibrium of kiln.The materials include recrystallized silicon carbide(RSiC) and reaction sintering silicon carbide(SiSiC),we will choose the most reasonable material for you according to different temperature and conditions.
Email:[email protected] skype:masonvicky
