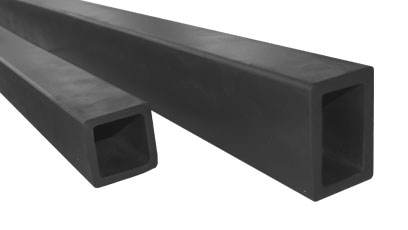

Refractory ceramic sic loading beam for household ceramics
Silicon Infiltrated SiSiC and Reaction-bonded RBSiC is a very high strength material that is often used for support beams for kiln structures or kiln-car systems. The beams are lightweight and remain straight after prolonged use. It can be used up to 1380ºC (2500ºF).

1380C temperature resistant ceramic sic loading beam for household ceramics

are mainly used for load-bearing structure frame for tunnel kiln,shuttle kiln and many other kilns.The characteristics of sic beam are high loading capacity under high temperature,no bending deformation with long service life,high thermal conductivity,save energy consumption obviously without increasing the weight of the kiln car. Sic beam is the ideal kiln furniture for sanitary ware,domestic ceramic and other industries.Recently we Sunshine Ceramics have developed a new style frame type energy-saving sic beam depending on customer usage,provide customers the better energy-saving solution.Our company has transformed hundreds of kiln cars for domestic and overseas customers,and has created large profits for our customers.


Characteristics:

Max temperature tolerance 1380 degree
Excellent oxidation and corrosion resistance
High thermal conductivity and shock resistance
High mechanical strength and abrasion resistance


Relevant Recommendation:
Silicon Nitride Ceramics
Oxide bonded SiC (OSIC)
Recrystallizde SiC (Re-SiC)
Reaction Bonded SiC (SiSiC)

Inquiry


Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description


Bearing Capacity of Beams

Size of Section (mm)


Wall Thickness(mm)

Concentrated Loading (kg.m/L)

Uniformly Distributed Loading(kg.m/L)

B Side

H Side

B Side

H Side

B Side

H Side

30

30

5

74

74

147

147

30

40

5

117

95

235

190

40

40

5

149

149

298

298

50

50

6

283

283

567

567

50

60

6

374

331

748

662

50

70

6

473

379

946

757

60

60

7

481

481

962

962

80

80

7

935

935

1869

1869

100

100

8

1708

1708

3416

3416

110

110

10

2498

2498

4997

4997





The Bending Strength of RBSIC(SiSiC) Beams is 250MP, safety coefficient is 5.
Concentrated Loading =the Value in the Table Accordingly x 1/L,
Uniformly Distributed Loading = the Value in the Table Accordingly x 1/L

We are offering any other kinds of kiln furniture and engineer ceramics ware on request.
