High Bearing Strength (silicon carbide sic roller) Sisic / Rbsic Ceramic Roller

1.Properities:
a)Excellent Thermal Shock Characteristics
b)Corrosion Resistance
c)As Cast Tight Dimensional Tolerances
d)High Creep Resistance
e)Superior Wear Resistance
f)Maximum Use Temperature to 1380 °C

2.User Benefits:
a)Superior Oxidation Resistance
b)Improved Performance
c)Lowered Cost Burden
d)Longer Life Between Replacement/Rebuilds
e)Allows Lower Weight
f)Very High Thermal Conductivity

3.RBSIC products wide application:
a)Automobile Industry
b)Boiler Industry
c)Chemical Industry
d)Crystallite Glass Industry
e)Magnetic Materials Industry
f)Metallurgy
g)Metallurgy Industry
h)Paper Industry
i)Petroleum Industry

Inquiry

Description

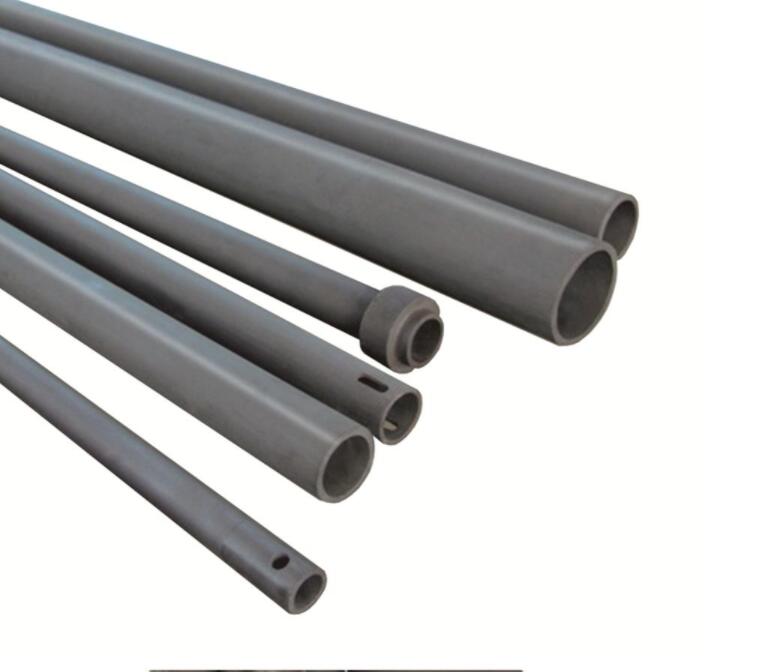

Reaction-bonded silicon carbide roller rod is applied to high-temperature burning zone of the roller furnace for domestic ceramics, sanitary ceramics, building ceramics, glass and magnetic materials, etc.
Reaction-bonded silicon carbide roller rod is characterized by big high-temperature resistance and no bending deformation, and its service life is 10-15 times that of alumina ceramic rod.

RBSIC(SiSiC)
Loading Capacity of RBSIC(SiSiC) Rollers
Size of Section (mm)	Wall Thickness(mm)	Concentrated Loading (kg.m/L)	Uniformly Distributed Loading(kg.m/L)
30	5	43	86
35	5	63	126
38	5	77	154
40	6	97	194
45	6	130	260
50	6	167	334
60	7	283	566
70	7	405	810

The Bending Strength of RBSIC(SiSiC) Rollers is 250MP, safety coefficient is 5.

Concentrated Loading =the Value in the Table Accordingly x 1/L,
Uniformly Distributed Loading = the Value in the Table Accordingly x 1/L。
