Fine Droplets: Small droplet size increases surface area, improving heat exchange and absorption efficiency
High Capacity: Delivers high flow rates while maintaining fine atomization
Circular Distribution: Hollow cone pattern provides wide coverage
Clog-Resistant Design: Simple whirlchamber structure with smooth flow channels
Multiple Material Options: Stainless steel, brass, PP, PVDF, silicon carbide, and more
Inquiry
|

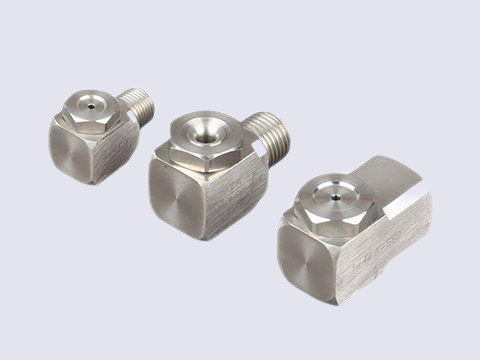

Hollow Cone (Whirlchamber-Type) Nozzle
Product Overview
The hollow cone (whirlchamber-type) nozzle is an industrial spray nozzle that uses an internal whirlchamber to rotate the fluid at high speed, producing a hollow cone spray pattern. The spray forms a circular ring distribution with small droplet size and high flow capacity, making it ideal for applications requiring a combination of fine atomization and high flow rates.
How It Works
Pressurized liquid enters the internal whirlchamber, where it is set into high-speed rotational motion. As the liquid exits the orifice, centrifugal force creates a hollow cone spray pattern. The liquid is distributed primarily along the circular edge of the spray cross-section, leaving the center hollow, with fine and uniform droplet size.
Typical Applications
-
Air, Gas & Water Cooling: Fine droplets rapidly evaporate, removing heat efficiently
-
Product Cooling on Conveyors: Uniform coverage for effective temperature reduction
-
Dust Control: Fine droplets effectively capture airborne dust particles
-
Flue Gas Desulfurization (FGD): High capacity with fine droplets improves absorption efficiency
-
Water Aeration: Increases dissolved oxygen in water bodies
-
Chemical Spraying: Gas-liquid reactions, scrubber tower spraying
Technical Specifications
| Parameter | Typical Range |
|---|---|
| Spray Pattern | Hollow cone (circular ring) |
| Spray Angle | 30° – 120° |
| Flow Rate | 0.5 – 100+ L/min (at 3 bar) |
| Operating Pressure | 0.5 – 15 bar |
| Droplet Size | Fine (pressure-dependent) |
| Connection Size | 1/8″ – 1″ NPT / BSPT |
| Available Materials | 303/316 stainless steel, brass, PP, PVDF, silicon carbide, Hastelloy |
Selection Guide
| Application | Recommended Material | Recommended Angle | Notes |
|---|---|---|---|
| Flue Gas Desulfurization (FGD) | Silicon carbide / Hastelloy | 90°–120° | Corrosion and wear resistant |
| Gas Cooling | 316 stainless steel | 60°–90° | Fine droplet size |
| Dust Control | Stainless steel / PP | 60°–100° | Wide coverage |
| Conveyor Cooling | Brass / stainless steel | 80°–110° | Uniform coverage |
| Water Aeration | PP / PVDF | 90°–120° | Corrosion resistant |
Comparison with Other Nozzle Types
| Nozzle Type | Spray Pattern | Droplet Size | Flow Capacity | Typical Applications |
|---|---|---|---|---|
| Hollow Cone (Whirlchamber) | Hollow circular ring | Fine | High | Cooling, dust control, FGD |
| Solid Cone | Solid circle | Medium | Medium | Cleaning, coverage |
| Flat Spray (Tapered) | Flat fan | Medium | Medium | Cleaning, coating |
| Flat Spray (Deflected) | Flat fan | Medium | High | Papermaking, dirty li |
