Strong resistance to corrosion, high impact vortex spray nozzle
Vortex spray nozzle characteristics:
The shape of Silicon carbide spray nozzle is a hollow cone spray, spray annular region.
Spray angle from 90° to 120°, the droplet size is medium.
Large and smooth flow path, virtually eliminating the clogging.
Double outlet flow distribution was up 50%, down 50%.
Connection flange connection, winding bonding, screw connections.
Made of reaction bonded silicon carbide, 316L stainless steel castings.
Inquiry
|

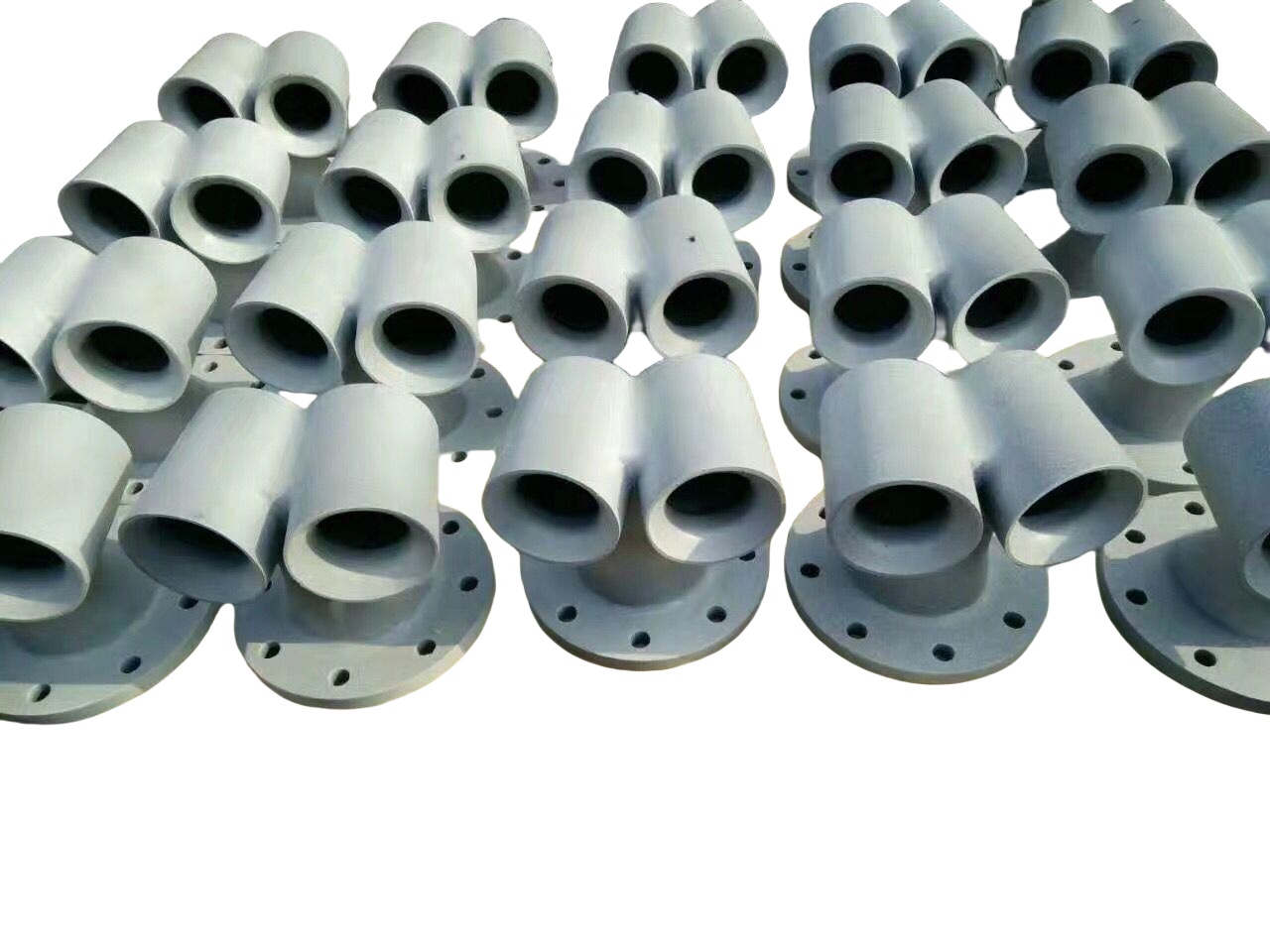

Silicon Carbide FGD Swirl Nozzle
The main characteristics of the silicon carbide FGD swirl nozzle include corrosion resistance, excellent wear resistance, high strength, oxidation resistance, long service life, non-blocking properties, and good flowability.
1. Introduction
The silicon carbide FGD swirl nozzle is a spray nozzle with a hollow conical single or double atomizer. The spray angle ranges from 90 degrees to 120 degrees, and the liquid flow rate ranges from 285 to 5900 liters per minute. With its high strength, high hardness, corrosion resistance, wear resistance, heat resistance, long service life, and other excellent characteristics, the silicon carbide FGD swirl nozzle is a key component in flue gas desulfurization, large-scale flue gas desulfurization in boilers, gas cooling, and other thermal power plant applications.
239 239 (2)
2. Physical Characteristics
(1) Heat resistance up to 1380℃
(2) Density: 3.02 g/cm3
(3) Working pressure: 280 MPa
(4) Bending strength: 250 MPa at 20℃ and 280 MPa at 1200℃.
(5) Acid and alkali resistance: excellent
3. Main Advantages
(1) High strength.
(2) High hardness.
(3) Excellent corrosion and oxidation resistance.
(4) High temperature resistance.
(5) Long service life.
