Power plant, burning coal project desulfurization and denitration.
Air purification, air cooling and defoaming
Evaporation, cooling, and dust controlling ,fire protection
Wetting air by dust removing spray--environment protection
Pre-treatment requires for non-blocking spray
Air cooling Desulphurization and dust control
Exhaust gas cleaning, Plastic spiral fogging nozzles
Fire fighting, fireproof Fire protection
Steel and iron /petrochemical industry dustproof application
Inquiry
|
· Male connection standard; female connection available by special order
· Spray Pattern: Hollow cone and full cone
· Inlet Size: 1/4", 3/8", 1/2", 3/4", 1" , 1-1/4", 1-1/2", 2", 3"
· Available materials: SS303, SS304, SS316, Brass, Teflon, PP, POM, PVDF, Ceramic, etc.
Features:
· High energy efficiency
· One-piece / no internal parts
· Clog-resistant performance
· High discharge velocity

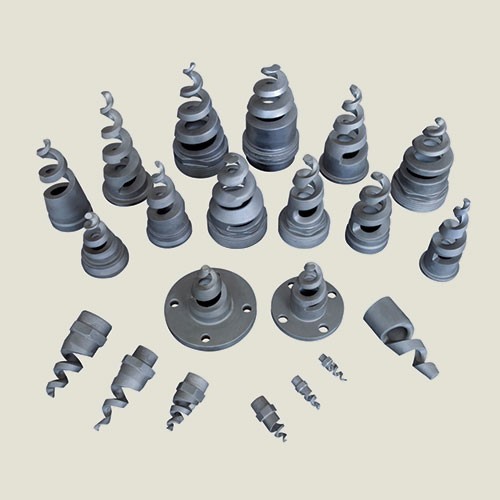

Desulphuriztion nozzles
RBSC (SiSiC) desulphurization nozzles are the key parts of flue gas desulphurization system in thermal power plants and large boilers. They are widely installed in the flue gas desulphurizaiton system of many thermal power plants and large boilers.
Single direction nozzle
In the 21st century industries world wide will face increasing demands for cleaner, more efficient operations.
Sunshine Ceramics company is committed to doing our part to protect the environment. Sunshine Ceramics specializes in spray nozzle design and technological innovation for the pollution control industry. Through higher spray nozzle efficiency and reliability, lower toxic emissions into our air and water are now being achieved. BETE’s superior nozzle designs feature reduced nozzle plugging, improved spray pattern distribution, lengthened nozzle life, and increased reliability and efficiency.
This highly efficient nozzle produces the smallest droplet diameter at the lowest pressure resulting in reduced power requirements for pumping.
Sunshine Ceramics has:
• The broadest line of spiral nozzles including improved clog-resistant designs, wider angles, and a complete range of flows.
• A full range of the standard nozzle designs: tangential inlet, whirl disk nozzles, and fan nozzles, as well as low- and high-flow air atomizing nozzles for quench and dry scrubbing applications.
• Unparalleled ability to design, manufacture and deliver customized nozzles. We work with you to meet the toughest government regulations. We can meet your special requirements, helping you to achieve optimum system performance.
Brief Description of FGD Scrubber Zones
Quench:
In this section of the scrubber, the hot flue gases are reduced in temperature before entering the pre-scrubber or absorber. This will protect any heat sensitive components in the absorber and reduce the volume of the gas, thereby increasing the residence time in the absorber.
Pre-Scrubber:
This section is used to remove particulates, chlorides, or both from the flue gas.
Absorber:
This is normally an open spray tower that brings the scrubber slurry into contact with the flue gas, allowing the chemical reactions that tie up the SO 2 to take place in the sump.
