1.Thermal stability: according to the use conditions of hot and cold products, special design is made to ensure the reliability of product quality.
2.Erosion resistance: the uniform and fine matrix design delays the erosion degree of the product.
Impact resistance: the product can withstand high thermal shock strength, so any process can be assured.
3.Acid resistance: the addition of special materials can significantly improve the quality of products, show excellent performance in acid resistance index, and greatly extend the service life of products.
4.High thermal conductivity: high content of fixed carbon ensures good thermal conductivity, reduces dissolution time and significantly reduces energy consumption.
5.Control of metal pollution: strict control of material composition ensures that the product does not pollute the metal when dissolved.
6.Quality stability: the manufacturing technology and quality assurance system of high pressure forming can more fully guarantee the quality stability.
Graphite material Index:.Grade MSS80 MSS85 MSS90 Grain Size
(μm)25 25 25 Bulk Density
(≥g/cm3)1.8 1.85 1.9 Compressive Strength
(≥MPa)60 65 70 Flexural Strength
(≥MPa)30 33 35 Porosity
(≤%)17 14 11 Specific Resistance
(≤μΩm)12 12 12 Ash Content
(≤%)0.08 0.08 0.08 Shore Hardness 50 55 60
| Item | Unit | Guarantee value | Typical value |
| Bulk Density | g/cm³ | ≥1.72 | 1.74 |
| Specific Resistance | μΩ.m | ≤9 | 8.5 |
| Flexural Strength | Mpa | ≥13.5 | 15.5 |
| Compressive Strength | Mpa | ≥32 | 38 |
| Termal Conductivity | W//mk | ≥120 | 140 |
| Ash Content | % | ≤0.2 | 0.1 |

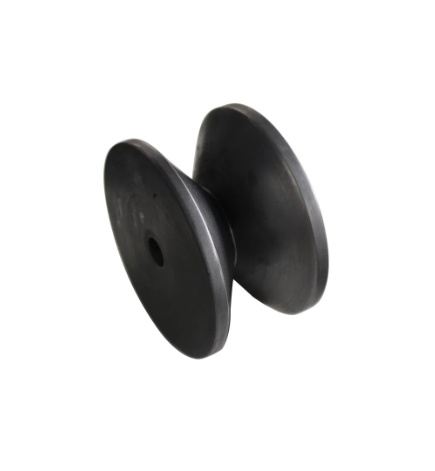

Product Photos
Applications
Graphite rotors find wide applications in various rotating equipment, including:
- Metallurgical Industry: Used in furnaces, kilns, and other high-temperature environments.
- Chemical Industry: Applied in chemical reactors, distillation towers, and storage tanks.
- Glass Manufacturing: Utilized in glass melting furnaces and glass fiber production.
- Foundry Industry: Employed in the molten treatment of metal casting.
- Electric discharge Industry.
- Eerospace Industry
